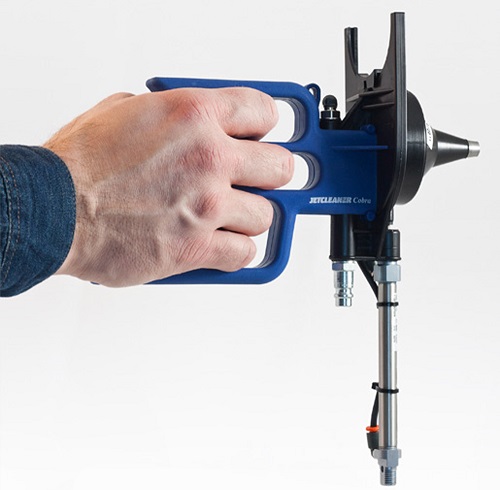

Hydroscand - E-Cleaner Cobra, E-Cleaner
system
Semi-automatic loading
and ergonomic grip
The e-cleaner system
is a quick and effective way to clean your hoses/tubes.
A foam plug are loaded into the e -cleaner Cobra and
propelled through the hose/tube by compressed air. The
Cobra has a unique semi-automatic loading system, an
ergonomically designed grip and a weight of only 0,3 kg.
It is suitable for hoses up to 2" and tubes up to an ID
of 60 mm.
TECHNICAL DATA
Hose
capacity: 3/16" - 2"
Tube capacity, ID: 4-60 mm
Max. length: Up to 100 metre
Purity level ISO4406:
ISO 20/17
Working pressure: max 7 bar
DESIGNATION
9034-90-00: E-Cleaner Cobra
semi-automatic gun, excl. nozzles
9034-90-01:
E-Cleaner Cobra complete case, inclusive 11 pcs hose
nozzles
9034-90-02: E-Cleaner Cobra complete case,
inclusive 11 pcs optional tube nozzles
COBRA HOSE NOZZLES
Material: black acetal
Sizes are avaliable
on request
COBRA TUBE NOZZLES
Material: red acetal
Sizes are avaliable on request
