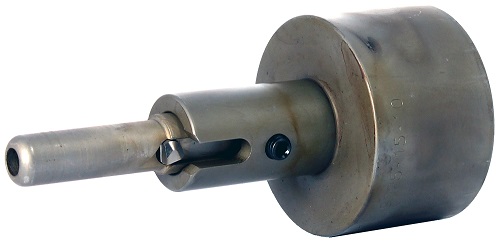

Internal Skiving Tool, IST

Hydroscand - Internal Skiving Tool, IST

This skiving tool is used on all our skiving machines. It is used for internal skiving of spiral hoses with 3-6 reinforcement layers to cater for interlock fittings. The tool is adjustable to suit varying needs of skiving lengths and depths.

TECHNICAL DATA
Material: Steel, Hardened
Adjustable skive length: 10-35 mm
Adjustable skive depth: 1-6 mm

DIMENSIONS
Length: 150-200 mm
Weight: 1,8-3,5 Kg

DESIGNATION
Internal skiving tool 3/8": 9025-15-06
5 mm internal skiving knife: 9025-01-05

Internal skiving tool 1/2": 9025-15-08
6 mm internal skiving knife: 9025-01-06

Internal skiving tool 5/8": 9025-15-10
Internal skiving tool 3/4": 9025-15-12
8 mm internal skiving knife: 9025-01-08

Internal skiving tool 1": 9025-15-16
Internal skiving tool 1 1/4": 9025-15-20
10 mm internal skiving knife: 9025-01-10

Internal skiving tool 1 1/2": 9025-15-24
Internal skiving tool 2": 9025-15-32
10 mm internal skiving knife, long: 9025-02-10
