MidiSkive 5-50B

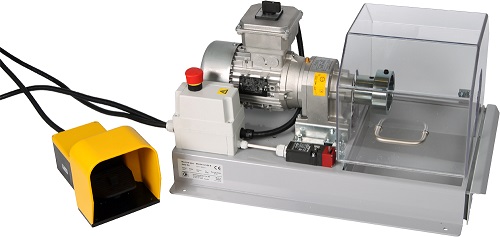

Hydroscand - MidiSkive 5-50B, Hose Skiving Machine, Bench Top Model

For efficient skiving of hydraulic hoses (external and internal) from dimensions 3/16" to 2". The machine is easily controlled by a foot pedal. With a bin for rubber waste.

TECHNICAL DATA
Hose capacity, external skiving 1-2-3-4 and 6 layer: 3/16" - 2"
Hose capacity, internal skiving 4 and 6 layer: 3/8" - 2"
Motor: 0,37 kW
Voltage 3-phase: 230/400V/16A/50Hz
Voltage single phase: 230V/10A/50Hz
Velocity: 125 rpm
Colour: Light Grey

DIMENSIONS
Width: 410 mm
Depth: 600 mm
Height: 390 mm
Weight: 35 Kg

DESIGNATION
MidiSkive 5-50B 400V/3-phase: 9020-04-01
MidiSkive 5-50B 230V/Single phase: 9020-04-02

ACCESSORIES
External skiving tool, 3/16" - 2": See separate specification
Internal skiving tool 3/8" - 2": See separate specification
