MidiSkive 5-50C

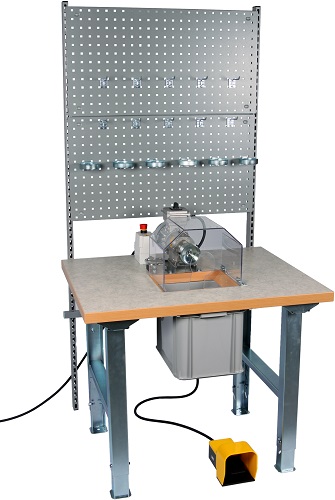

Hydroscand - MidiSkive 5-50C, Skiving Machine with Table

A complete Skiving machine with a table and tool holders for efficient skiving of hydraulic hoses from dimensions 3/16" up to 2". MidiSkive 5-50C comes with tool holders and a waste collection bin.

TECHNICAL DATA
Hose capacity external skiving 1-2-3-4 and 6 layer: 3/16" - 2"
Hose capacity internal skiving: 3/8" - 2"
Hooks för external skiving tools: 12 pcs
Holders for internal skiving tools: 6 pcs
Motor: 0,37 kW
Voltage 3-phase: 230/400V/16A/50Hz
Velocity: 125 rpm
Colour: Light Grey

DIMENSIONS
Width: 900 mm
Depth: 850 mm
Height pf working table, adjustable: 800-950 mm
Heght totaly: max. 2 150 mm
Weight: 75 Kg

DESIGNATION
MidiSkive 5-50C,400V 3-phase: 9020-03-00

ACCESSORIES
External skiving tool, 3/16" - 2": See separate specification
Internal skiving tool 3/8" - 2": See separate specification
